Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

Name: Dental Implant Orthodontic CBCT System HighResolution 3D Imaging for Precise Diagnosis
Brand: LeoTech
Price: 1 USD

Wholesale Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis from china suppliers

Active area(mm²) : 250×300

Detector : Me2530X

Power(kW) : 1.2

Model Number : CBCT

Brand Name : LeoTech

Certification : CE

Place of Origin : China

MOQ : 1

FOV(mm²) : 150×120 230×180 80×80

Frame System weight（kg） : 196

Frame System size(mm³) : 1037×1297×2365

Dimensions(mm³) : 337×280×35

Electric source（V) : AC220±10%

mA range(mA) : 1-20

Delivery Time : 5-8 work days

Payment Terms : T/T

Product Name : Dental Implant Orthodontic CBCT System

Contact Now

Dental Implant Orthodontic CBCT System

Product Overview

The dental radiography system provides comprehensive imaging of dental conditions, capturing all-around views of dental tissues, jaw joints, and related structures. This advanced system assists doctors with pre-surgical program instructions and enables scientific postoperative observation.

Key Features

Large size (250mm X 300mm) flat panel detector with extensive dynamic range for full skull imaging in a single scan
Conventional CBCT design achieving 3-in-1 functionality
Next-generation cephalometric imaging technology with compact footprint
Ultra-fast scanning algorithm: CBCT up to 16s, Pano up to 12s
Innovative frame design with maximum imaging field of view up to 230mm X 180mm
1.2kW high-power ray source with 15° anode target angle for large FOV imaging at short SID

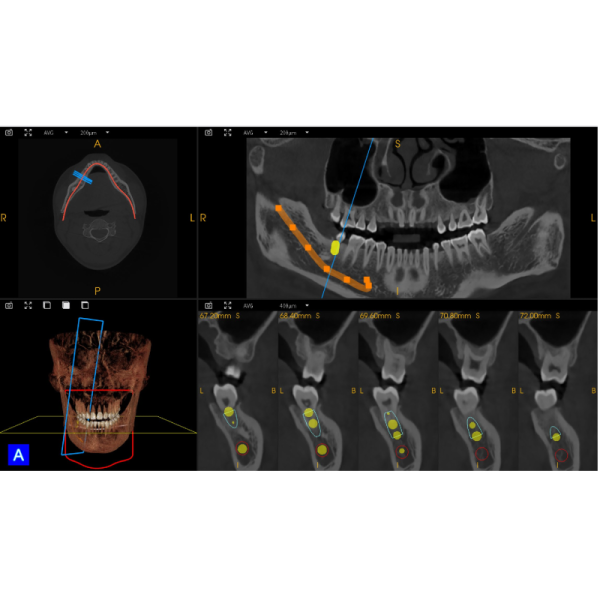

Implant simulation with automatic collision detection between multiple implants and nerve canal

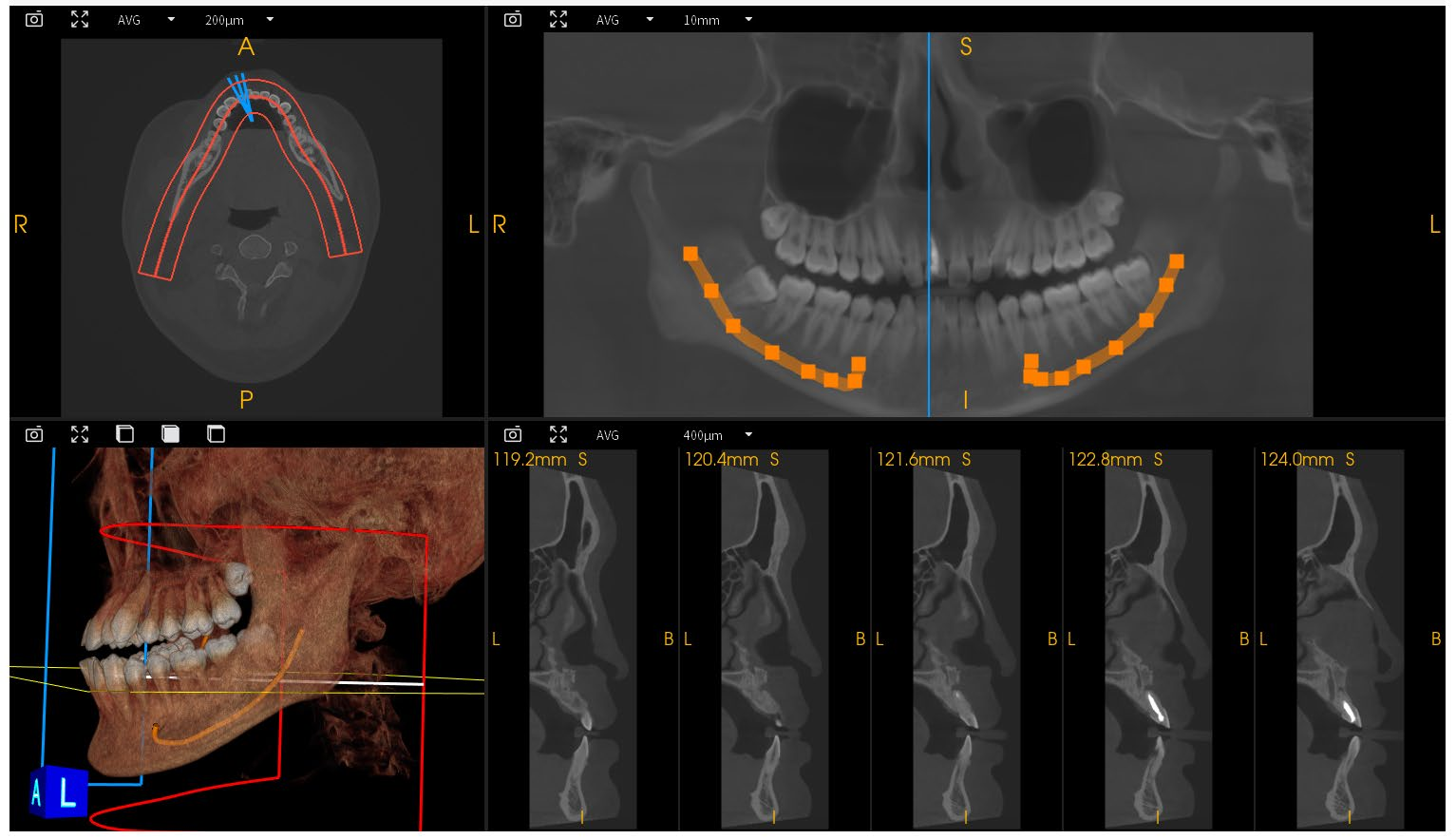

Nerve canal depiction for clear 3D positioning information
Comprehensive implant database compatible with most market systems
Metal Artifact Reduction software to minimize effects of dense radiopaque objects

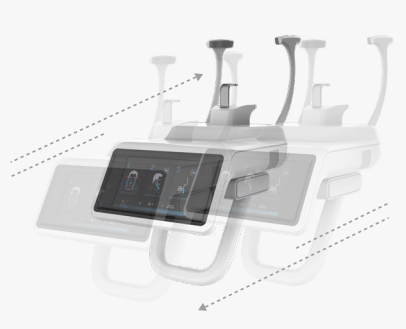

Mechanical Movements

Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

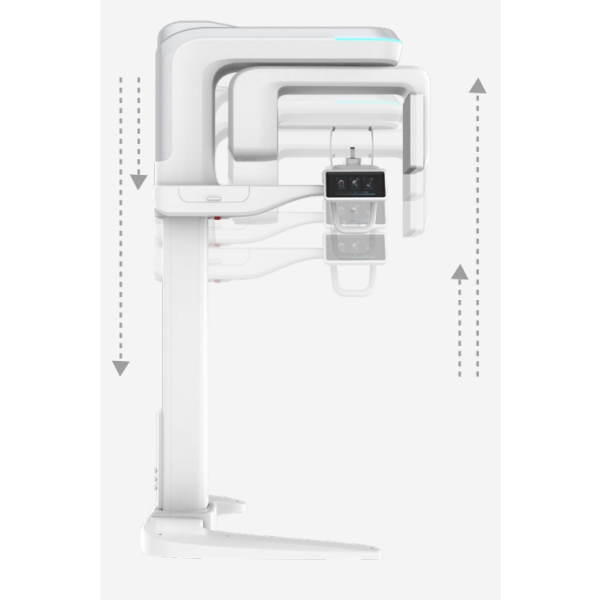

Column up/down

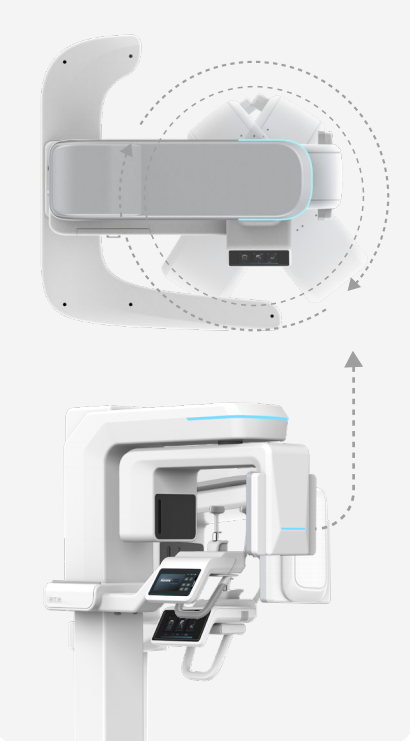

U-arm rotation

Tooth bracket up/down

Chin rest moves back / forth

System Advantages

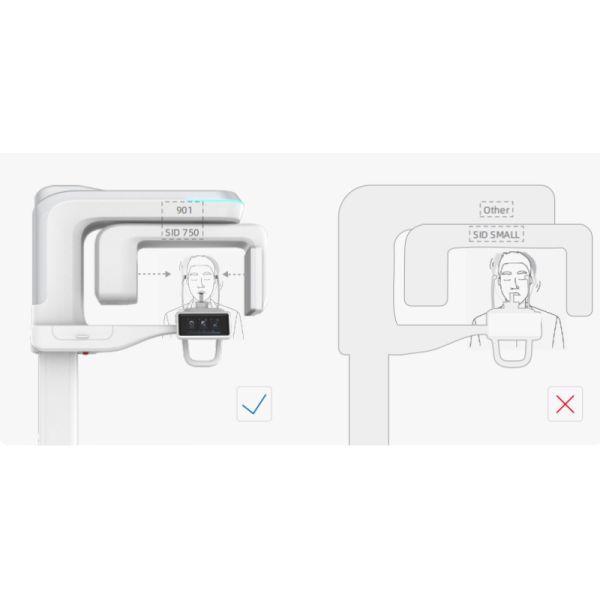

Larger SID reduces impact possibility

Mechanical motion greatly reduces noise

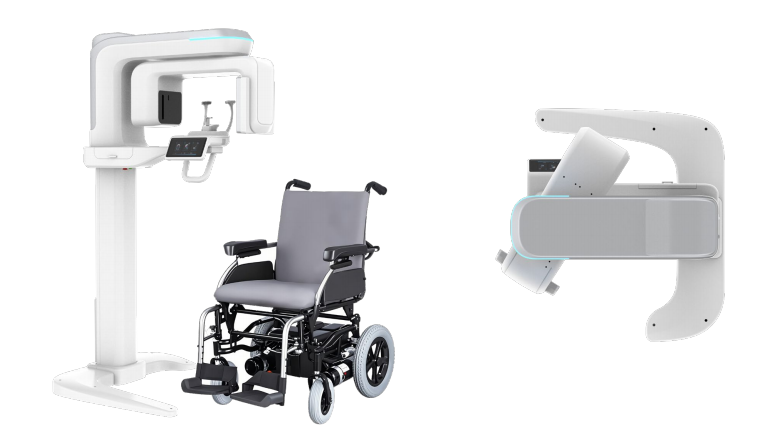

Open design supports wheelchairs

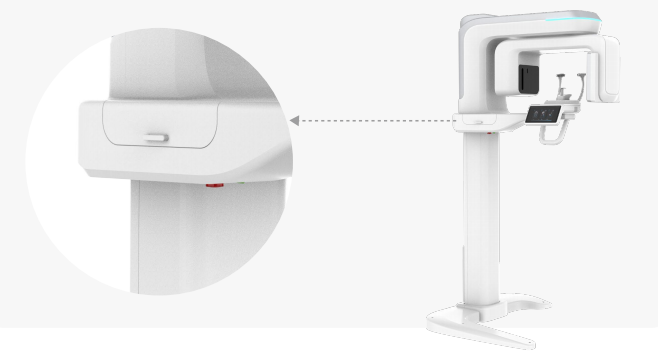

Humanized design storage box

Application Features

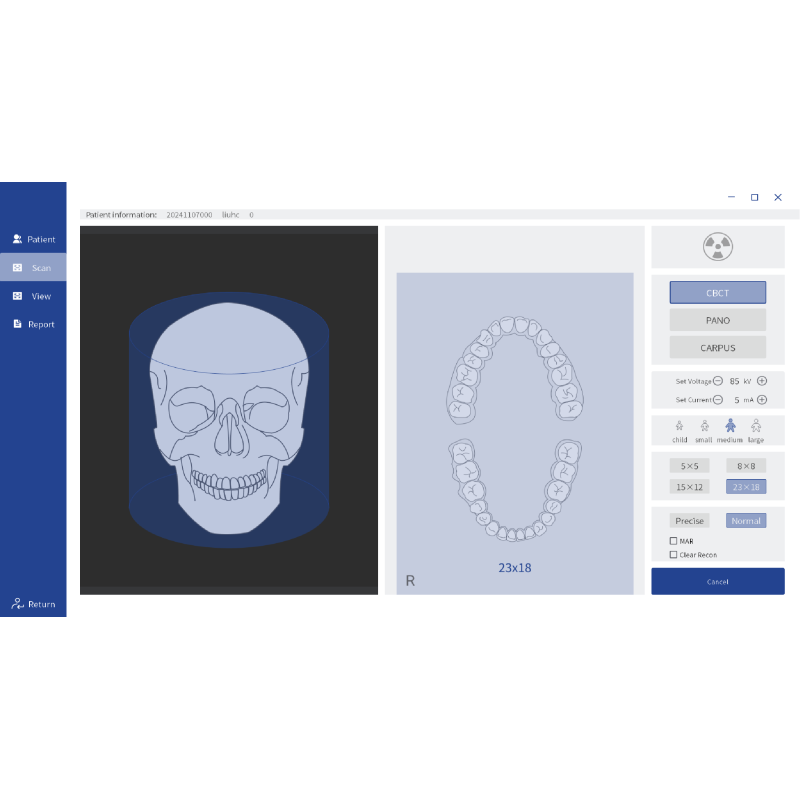

Simplified camera program design

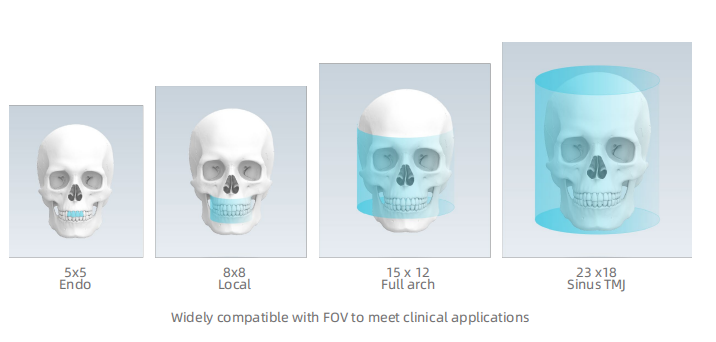

World's largest FOV 23x18 with 70μm high resolution voxels

Complete and easy-to-use software functions

Includes MPR Sectioning, TMJ, CEPH and report modes

Advanced Functions

Full function mode meets various clinical needs

Dental arch and nerve mapping to reduce surgical risks

TMJ diagnostic mode for wear and displacement observation

Surgical planning improves accuracy and reduces risks

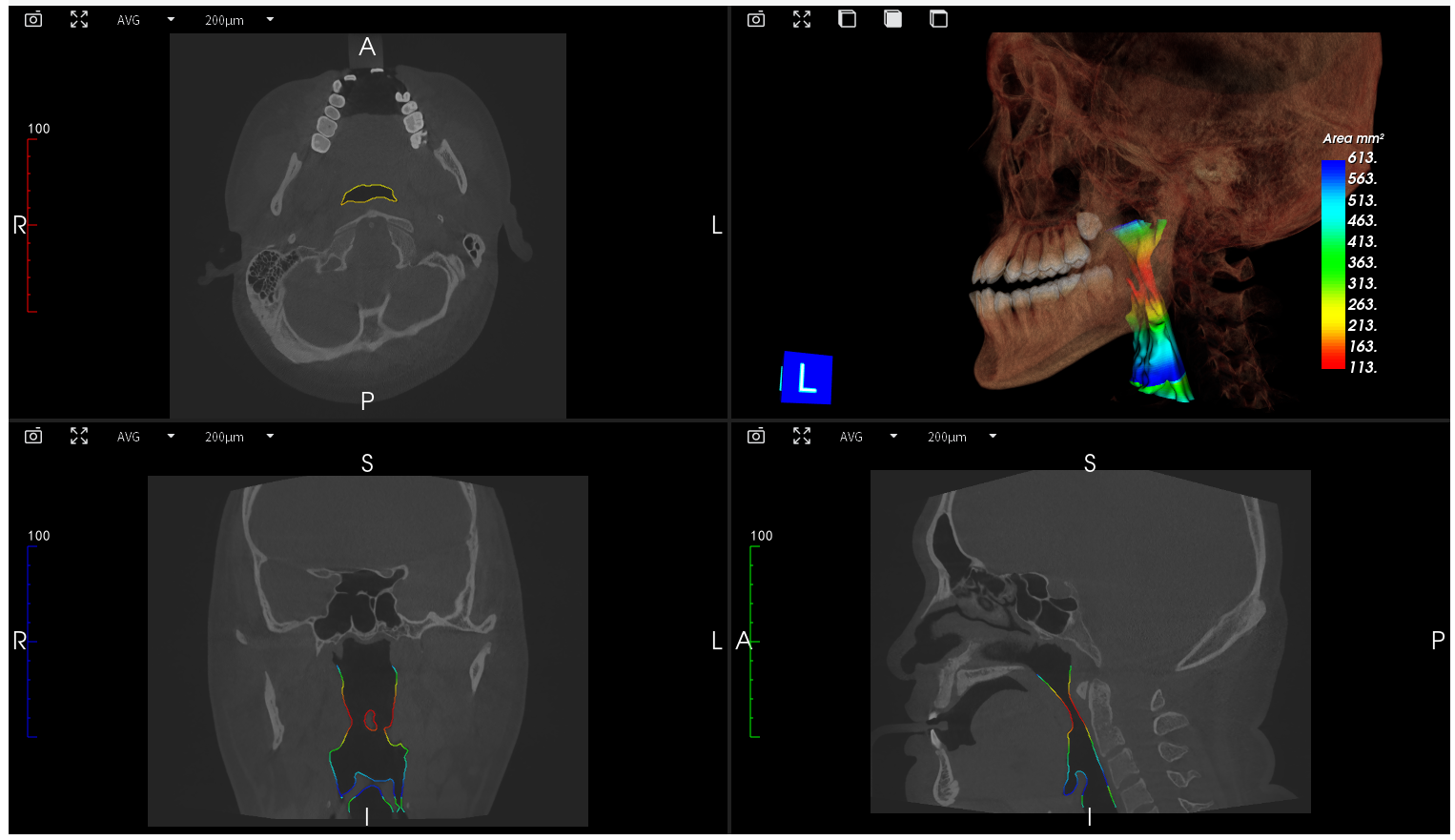

Orthodontic airway examination reduces treatment risks

System Dimensions

Technical Parameters

Overview
Detector	Me2530X
Active area (mm²)	250*300
FOV (mm²)	150120; 230180; 80*80
AD Conversion (bit)	16
Pixel Pitch (μm)	100
Dimensions (mm³)	33728035

X-ray Tube
Focal spots (mm)	0.5
Anode Angle (°)	15
Anode Heat Capacity (kHU)	50
Maximum anode power (W)	275

Generator
Power (kW)	1.2
Electric source (V)	AC220±10%
KVp range (KVp)	60-120
mA range (mA)	1-20

Frame
Column lifting stroke (mm)	800
X-axis motion range of U-type boom (mm)	0-70
Motion range of Y axis of U-type boom (mm)	0-70
Z-axis rotation range of U-type boom (°)	0-540
Frankfurt horizontal light moving range (mm)	60
Tray longitudinal movement range (mm)	60
System weight (kg)	196
System size (mm³)	103712972365

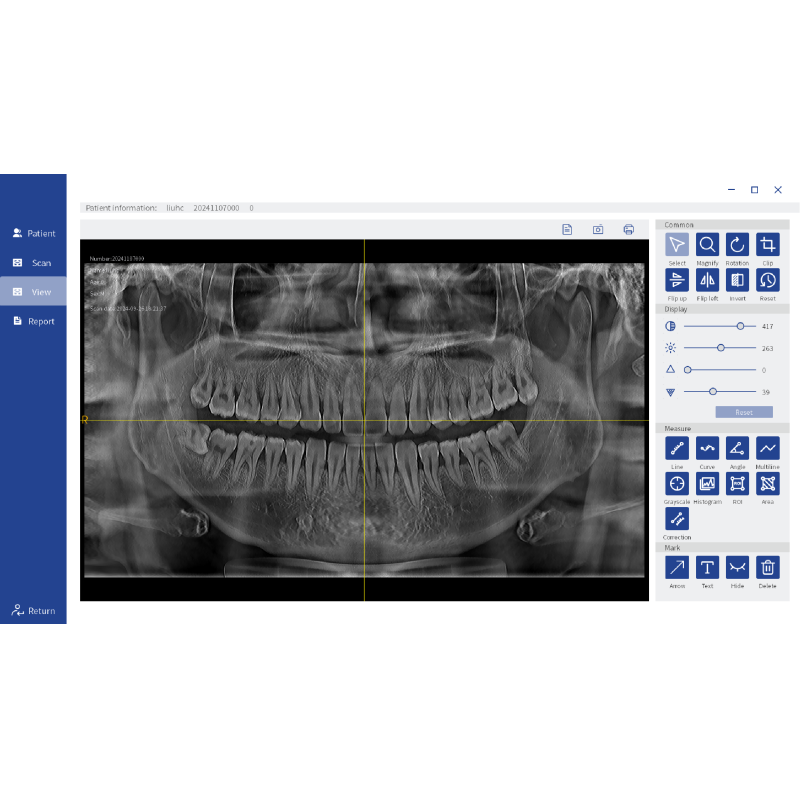

Image Quality Demonstrations

CT RECON PANO

ENDO - Excellent image quality for detecting subtle lesions
